909RPDA
Discontinued

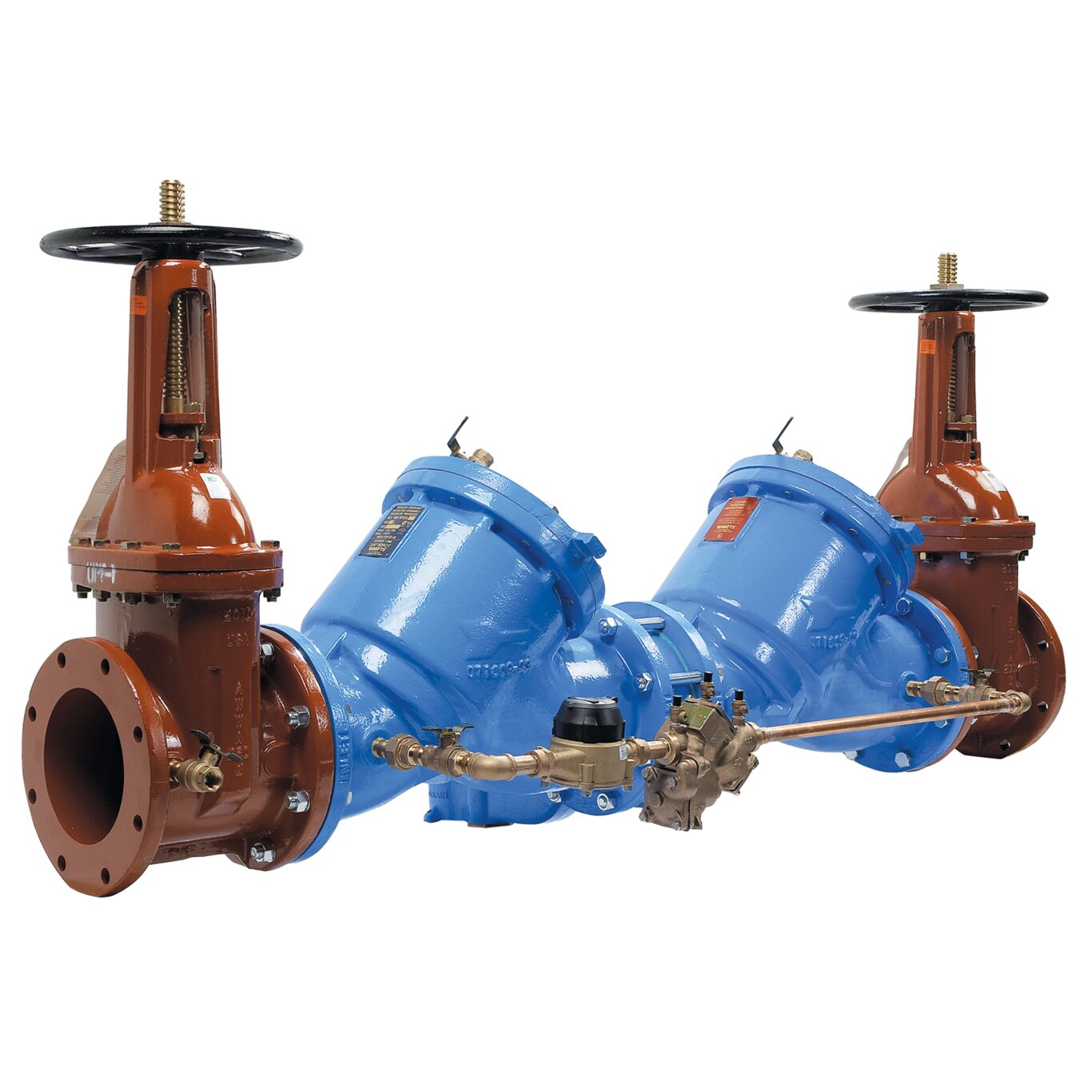

Reduced Pressure Detector Assembly Backflow Preventers, Cast Iron
Series 909RPDA reduced pressure detector assembly backflow preventers are designed to prevent the reverse flow of fire protection system substances from being pumped or siphoned into the potable water supply. The 909RPDA incorporates a meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. It consists of a coated cast iron body with stainless steel trim, cast iron gate valves, a pressure-differential relief valve, shutoff valves, and bronze ball-type test cocks. Series 909RPDA provides maximum flow at low pressure drop utilizing the air-in/water-out design principle for protection during emergency combined backsiphonage and backpressure conditions. Maximum working pressure is 175 psi (12.06 bar).
The coating on this backflow assembly uses ArmorTek™ technology to resist corrosion due to microbial induced corrosion (MIC) or exposed metal substrate.
- Provide detection point for costly water leaks and illegal taps
- Unique two-channel relief valve provides maximum capacity during emergency conditions and stops potential backflow using air-in/water-out principle
- Modular design facilitates easy maintenance and assembly
- Replaceable stainless steel seats
- Coated with advanced ArmorTek coating technology for 6x less surface rusting
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 909RPDA
